Sea Containers
Sea containers are specially designed for heavy transport and moving large loads. The most common sizes are 10' DV, 20' DV, 20' HC, 40' DV, 40' HC, and 45' HC, which offer impressive loading capacities.

For example, a 40' HC container provides a loading volume of no less than 75.78 m³. Many sea containers are equipped with a CSC certificate (Convention for Safe Containers), making them ideal for use in international sea freight transport but also a quick solution for storage.

Below is an overview of the most common sea container dimensions:

Type	10' DV	20' DV	20' HC	40' DV	40' HC	45' HC
Length	2 991 mm	6 060 mm	6 060 mm	12 192 mm	12 192 mm	13 716 mm
Width	2 438 mm	2 438 mm	2 438 mm	2 438 mm	2 438 mm	2 438 mm
Height	2 591 mm	2 591 mm	2 896 mm	2 591 mm	2 896 mm	2 896 mm
Internal Length	2 831 mm	5 898 mm	5 898 mm	12 032 mm	12 032 mm	13 556 mm
Internal Width	2 352 mm	2 352 mm	2 352 mm	2 352 mm	2 352 mm	2 352 mm
Internal Height	2 393 mm	2 393 mm	2 698 mm	2 393 mm	2 698 mm	2 698 mm
Door Opening Width	2 340 mm	2 340 mm	2 340 mm	2 340 mm	2 340 mm	2 340 mm
Door Opening Height	2 280 mm	2 280 mm	2 585 mm	2 280 mm	2 585 mm	2 585 mm
Tare Weight	1 300 kg	2 200 kg	2 300 kg	3 800 kg	4 200 kg	4 800 kg
Max. Load Weight	10 000 kg	28 300 kg	28 100 kg	26 600 kg	26 600 kg	25 600 kg

Quality of the sea container

Sea containers are available not only in various sizes, such as 10ft, 20ft, and 40ft, but also in different quality grades: A, A+, B, and C. These classifications indicate the condition of the container — from almost new (A+) to functional but visibly used (C). Depending on your application (transport, storage, or other purposes), you can choose the quality that best suits your needs.

Unsure which quality is right for your project? Feel free to contact us for personalized advice.

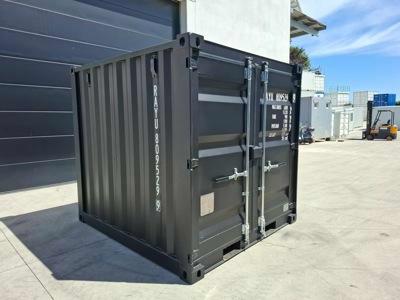

8FT Shipping Container from Mechanic International

FIRST TRIP 8FT SHIPPING CONTAINER

2438 x 2200 x 2260 mm

More information | FIRST TRIP 8FT SHIPPING CONTAINER

Price upon request

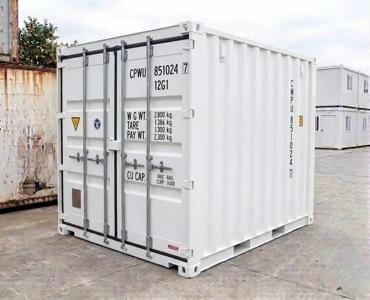

First voyage 10FT shipping container from Mechanic International

FIRST TRIP 10FT SHIPPING CONTAINER

2991 x 2438 x 2591 mm

More information | FIRST TRIP 10FT SHIPPING CONTAINER

Price upon request

First voyage 20FT white shipping container from Mechanic International

FIRST TRIP 20FT SHIPPING CONTAINER

(1)

6058 x 2438 x 2591 mm

More information | FIRST TRIP 20FT SHIPPING CONTAINER

Price upon request

Second-hand 20FT shipping container for rent or sale at Mechanic International

USED 20FT SHIPPING CONTAINER

6058 x 2438 x 2591 mm

More information | USED 20FT SHIPPING CONTAINER

Price upon request

First journey 20FT open side shipping container for rent or sale at Mechanic International

20FT OPEN SIDE SHIPPING CONTAINER (FIRST TRIP)

6058 x 2438 x 2591 mm

More information | 20FT OPEN SIDE SHIPPING CONTAINER (FIRST TRIP)

Price upon request

Second-hand 40FT shipping container from Mechanic International

USED 40FT SHIPPING CONTAINER

12192 x 2438 x 2591 mm

More information | USED 40FT SHIPPING CONTAINER

Price upon request

Storage Containers

Storage containers are sturdy, portable units used for the temporary or long-term storage of goods. They are often made of steel and provide protection against weather conditions, vandalism, and theft. Storage containers are widely used in various sectors, such as the construction industry.

Thanks to their standardized dimensions, they can be easily stacked and transported, making them versatile and cost-effective. They are ideal for securely storing materials, equipment, or inventory in a flexible and accessible way. This type of container is not suitable for sea transport.

Here is an overview of the most common storage container dimensions:

Type	Moverbox	5 ft	6 ft	8 ft	10 ft	15 ft	20 ft
Length	2 200 mm	1 500 mm	1 829 mm	2 438 mm	2 991 mm	4 550 mm	6 060 mm
Width	1 600 mm	2 200 mm	1 950 mm	2 200 mm	2 438 mm	2 200 mm	2 438 mm
Height	2 450 mm	2 260 mm	1 910 mm	2 260 mm	2 591 mm	2 591 mm	2 591 mm
Internal Length	2 040 mm	1 400 mm	1 710 mm	2 300 mm	2 831 mm	4 400 mm	5 898 mm
Internal Width	1 500 mm	2 100 mm	1 860 mm	2 100 mm	2 350 mm	2 100 mm	2 350 mm
Internal Height	2 300 mm	2 000 mm	1 780 mm	2 000 mm	2 390 mm	2 390 mm	2 390 mm
Volume (m³)	7,04 m³	5,88 m³	5,66 m³	9,66 m³	15,90 m³	22,08 m³	33,13 m³
Door Opening Width	1 900 mm	1 900 mm	1 750 mm	2 050 mm	2 340 mm	2 000 mm	2 340 mm
Door Opening Height	1 900 mm	1 900 mm	1 750 mm	1 900 mm	2 280 mm	2 280 mm	2 280 mm
Tare Weight (kg)	2 300 kg	450 kg	450 kg	600 kg	1 300 kg	1 700 kg	2 200 kg
Max. Load Weight (kg)	350 kg	3 000 kg	3 000 kg	3 500 kg	8 500 kg	10 000 kg	28 300 kg
